# Setting up Mythic C2

This documentation will go through installation and configuration part for Mythic C2.

Here, I will showcase how to download, install it, setup HTTP C2 profile for SSL communication and install the Apollo agent.

You will need:

Before going straight to the installation, we need to make sure we have the prerequisites. Mythic is heavily dockerised system, which simply mean that everything runs inside a docker container. In order to make it work you will need to have:

• docker
• docker-compose plugin
• gcc
• make

The following one liner should be enough:

sudo apt update && sudo apt install -y docker.io docker-compose-plugin gcc make

Now we are ready to install Mythic C2:

cd /opt/
git clone https://github.com/its-a-feature/Mythic
cd Mythic
sudo make

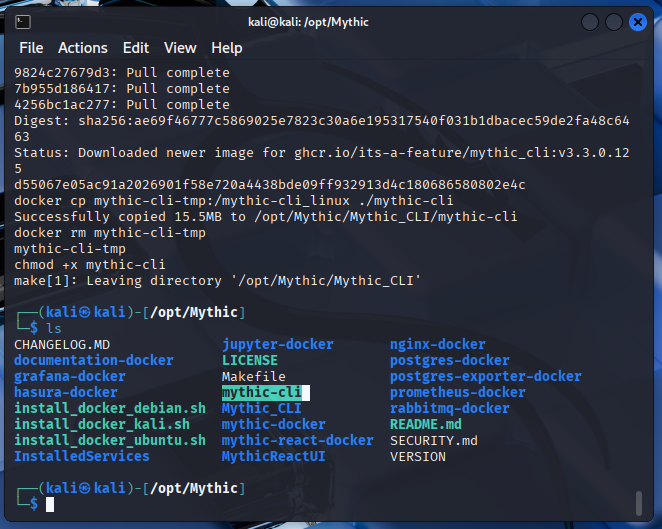

If everything is alright up to this point, a mythic-cli binary will be generated inside your folder. This binary controls everything.

Then we need to install a C2 profile and an Agent.

In a nutshell, the Agent is the payload itself that will start a callback when executed on the targeted system, whereas the C2 profile is the nature of the callback, for example SMB / HTTP and e.t.c.

Open sources C2 profiles can be found here: https://github.com/MythicC2Profiles

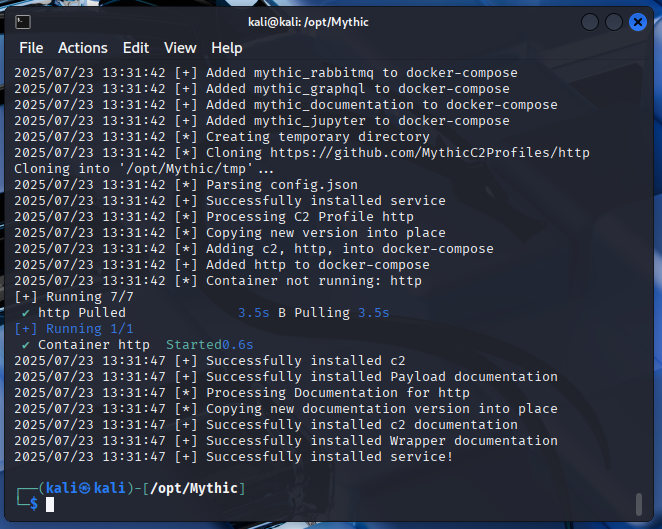

To install the HTTP profile you can follow these steps, which are also explained in its repo:

cd /opt/Mythic
sudo ./mythic-cli install github https://github.com/MythicC2Profiles/http

Open sources Agents can be found here: https://github.com/mythicagents

To install the Apollo agent you can follow these steps, which are also explained in its repo

cd /opt/Mythic
sudo ./mythic-cli install github https://github.com/MythicAgents/Apollo.git

Here I want to setup the HTTP C2 profile to accept only encrypted communication. For the demonstration purposes I will go with self signed certificate, but ideally, you would want to create a valid certificate.

To generate self signed certificate you can use this snippet:

openssl req -x509 -newkey rsa:4096 -keyout key.pem -out cert.pem -sha256 -days 365

This will output 2 file:

• cert.pem
• key.pem

Place them in /opt/Mythic/C2_Profiles/http/c2_code/

Then, open /opt/Mythic/C2_Profiles/http/c2_code/config.json with any text editor (root needed by default)

And here, make sure to have something like this:

{
  "instances": [
  {
    "ServerHeaders": {
      "Server": "NetDNA-cache/2.2",
      "Cache-Control": "max-age=0, no-cache",
      "Pragma": "no-cache",
      "Connection": "keep-alive",
      "Content-Type": "application/javascript; charset=utf-8"
    },
    "port": 443,
    "key_path": "key.pem",
    "cert_path": "cert.pem",
    "debug": false,
    "use_ssl": true,
    "payloads": {}
    }
  ]
}

Pay attention to:

• port
• key_path
• cert_path
• use_ssl

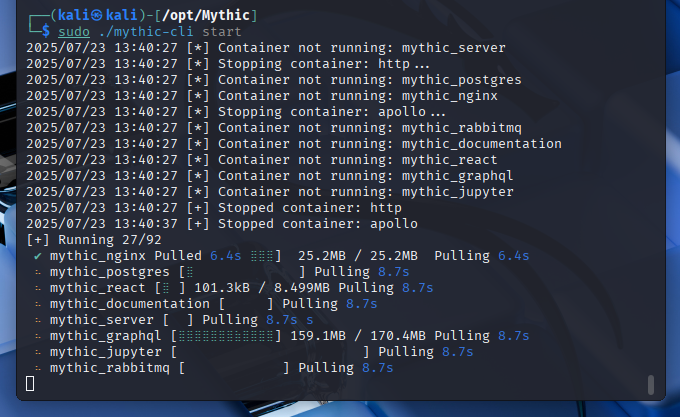

Now you can start your whole Mythic C2, which will also fire up the HTTP C2 profile and the Apollo agent.

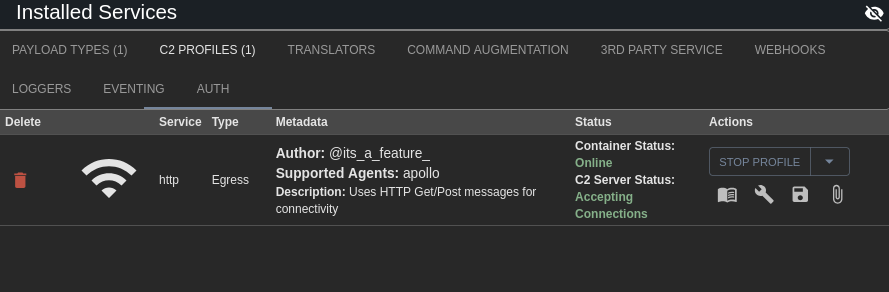

If everything is alright, you should see both dockers running, and also their status should be online from the Mythic UI

If you want to use Mythic C2 with your team, ideally you do not want to expose the UI itself. This snippet will help:

iptables -I DOCKER 1 -p tcp -s "Operator IP" --dport 7443 -j ACCEPT
iptables -A DOCKER -j DROP

This will allow specific IP (Operator IP) to connect to the Mythic's UI and drop all other requests.

Thank you for your time, hope this was useful.
